Gyratory Vibro Sifter
Multimill Compact Range of Vibro Sifter
Building Customer Satisfaction through Quality Service and Value
Enquiry Now
Multimill

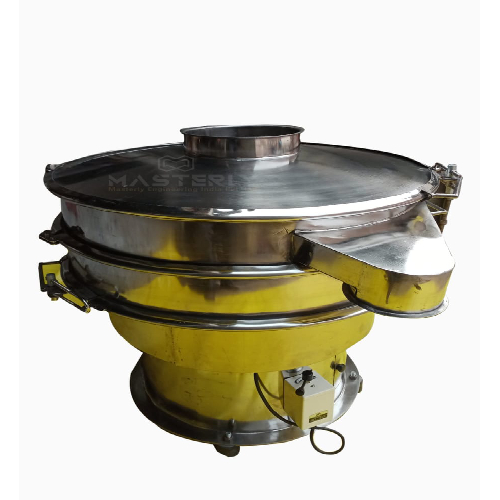

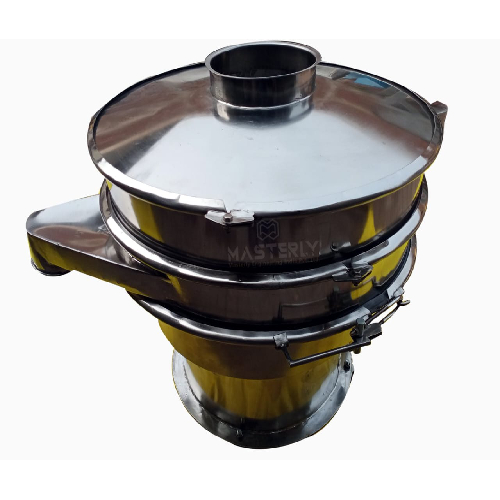

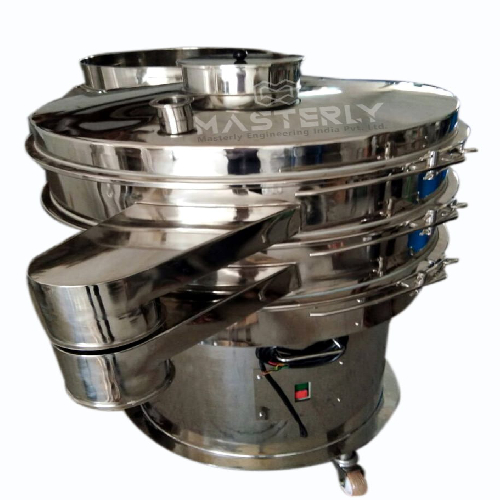

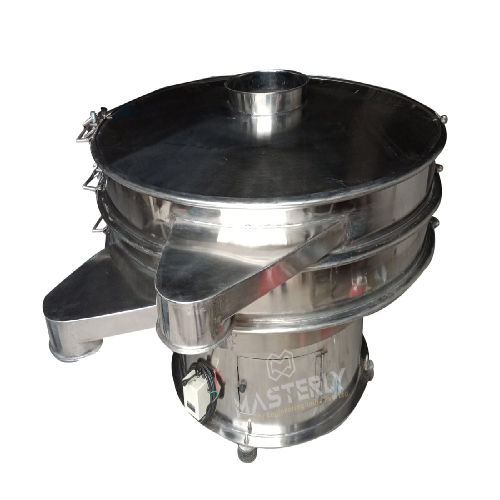

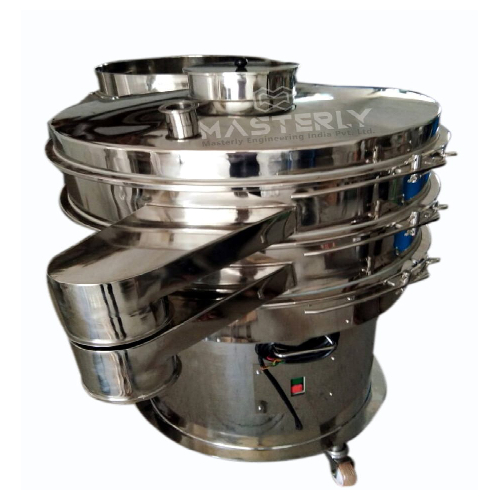

Vibratory Sifter is a circular gyratory type separating and sifting system, designed for processing product on an industrial scale.
The Multimill Vibratory Separator is a simple and efficient method of separating out bulk products by particles size.
The system is available in multiple stacked or single screening deck configurations and comes in a range of sizes to handle any throughput requirements.
Vibratory Sifter is a circular gyratory type separating and sifting system, designed for processing product on an industrial scale.
The Multimill Vibratory Separator is a simple and efficient method of separating out bulk products by particles size.
The system is available in multiple stacked or single screening deck configurations and comes in a range of sizes to handle any throughput requirements.
Multiple Separations – The vibratory separator can be stacked with up to 4 screening decks, separating into as
many as five fractions.
Range of Sizes – The separators are available in 24”, 30”,36”, 48”, 60” and 72” diameters to handle throughputs
ranging from a few kilograms to a few tones.
Advantages of Vibro Sifter
- Compact and portable design
- Guarantee low noise operation and high speed operation
- Energy efficient equipment
- Uses a optional flame proof motor material
- Made from high grade stainless steel 304, 316,
- Better dust handling capability.
- Many screen options such as double or triple.
- Easy to dismantle and clean.
- Adjustable vibratory motion.
- Sturdy and robust design.
- Easy to install and operate.
- Design should allow for easy and fast changing of sieves.
- Guarantee high performance.
- Durable to guarantee a long service lifespan thereby reducing maintenance costs.
| Model | Machine Dia.MM | Machine Dia.Inch | Screen mesh | Layer (Deck) |
|---|---|---|---|---|
| MVS24 | 610 | 24" | 2-500 mesh | 1-4 |
| MVS30 | 770 | 30" | 2-500 mesh | 1-4 |
| MVS36 | 900 | 36" | 2-500 mesh | 1-4 |
| MVS48 | 1200 | 48" | 2-500 mesh | 1-4 |
| MVS60 | 1500 | 60" | 2-500 mesh | 1-3 |
| MVS72 | 1800 | 72" | 2-500 mesh | 1-3 |
Sandwich Screen Ring Comes with Bolting Systems Which will enable the mesh frame to change mesh Cloth in-House.
